Pill

Pills are used to highlight important information in a list or form such as a status.
Pill intro image
Demo and Developer GuidelinesFigma Component

Anatomy

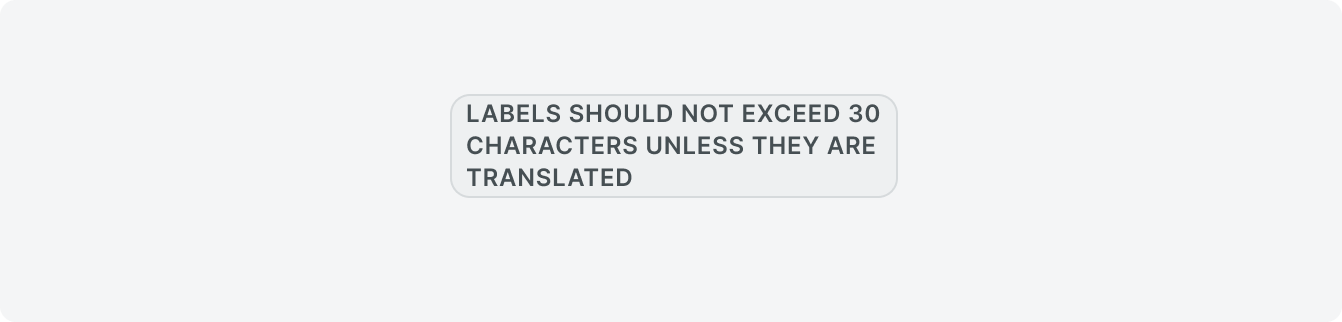

Label

Labels are uppercase without punctuation.
‍
Character count limit: 30
Pill label that wraps
An example of a pill that wraps. This should not happen unless translation elongates a pill’s label.

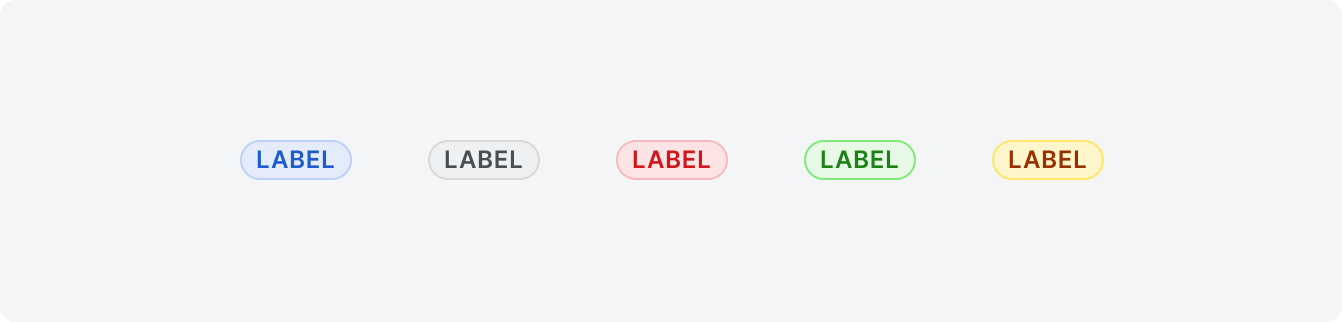

Container

The pill can be any of these colors: gray (default), blue, green, yellow, red, cyan and magenta. We suggest using semantic colors (red, yellow, green) for statuses.

Behavior

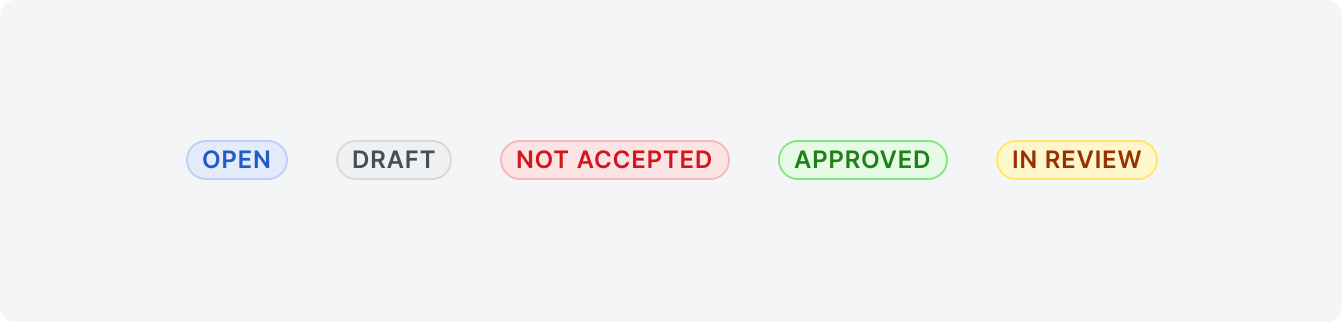

Status Types

When used for statuses, use the following color assignments.
Color assignments demonstrate general status types. Custom labels can also be used.

Other Usages

If there is a need for a Pilot and Beta pill, please use cyan and magenta pills respectively.

Placement

The pill should always be placed with at least 12px margin on all sides.

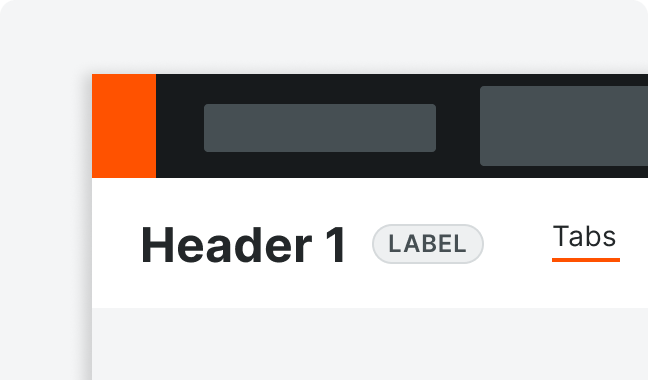

Correct usage of a pill with 12px margin
Correct
Incorrect usage of pill with no margin
Incorrect

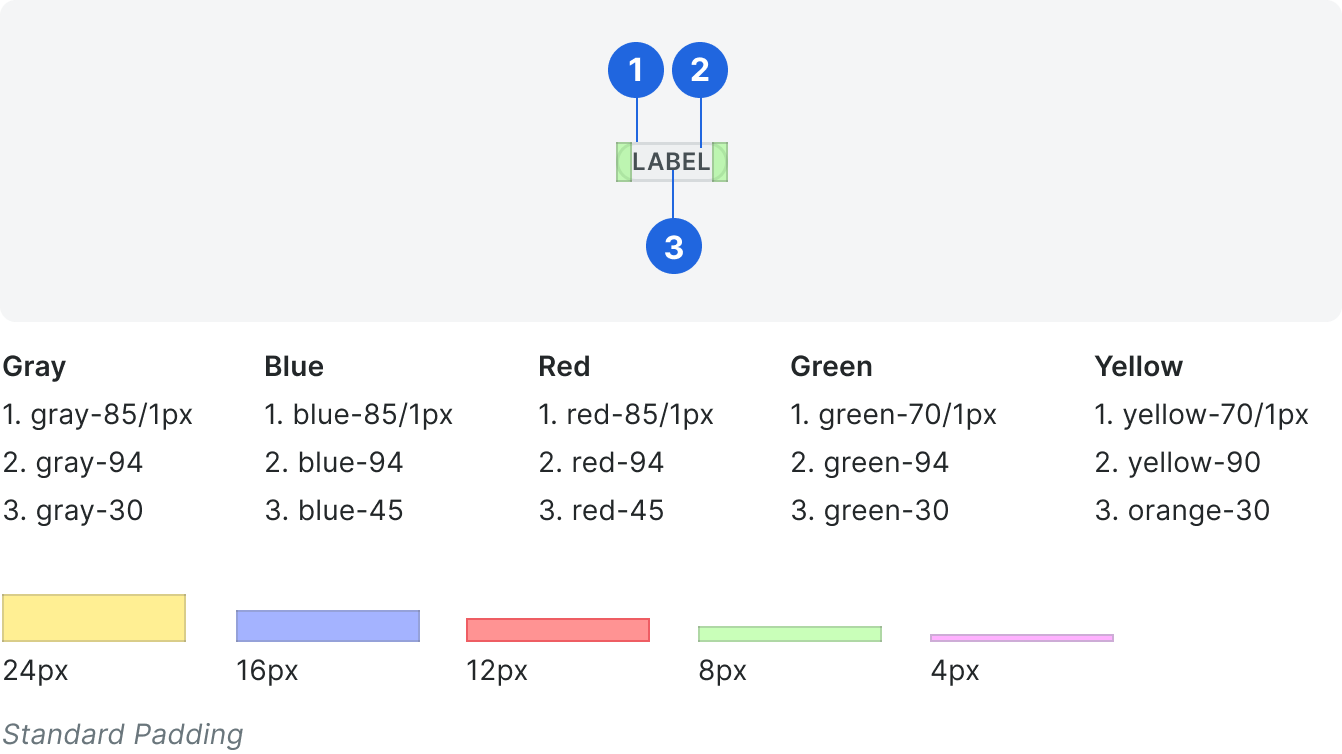

Specifications

Status Types

Color & Typography
